PowerTRAC

PowerTRAC

Get your FREE PowerTRAC demo now

Control Unlimited Possibilities

PowerTRAC, the latest software from Extech Electronics Co. (EEC), puts complete control in the hands of EEC power source users. The software supports the full range of AC or DC power source systems — even bundled options — automatically configuring for optimal settings. The software easily collects the footprint for each test with fast, automatic data recording functionality, quickly exporting information to Microsoft Excel or txt file format for future data analysis. PowerTRAC plug-and-play software recognizes your system instantly, transferring control right to your monitor, maintaining optimal operational efficiencies at your manufacturing facility.

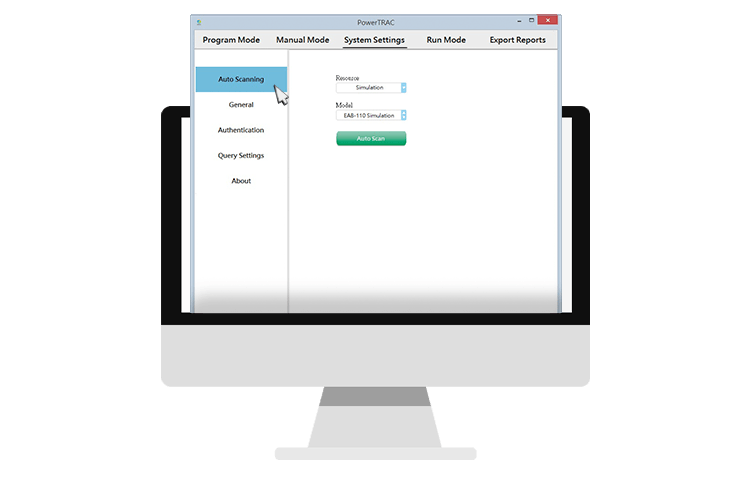

Auto Detect Function

Easily to get control of your system with auto detect function, which quickly configures your system settings via your monitor, including the selected system options.

PowerTRAC autodetect function

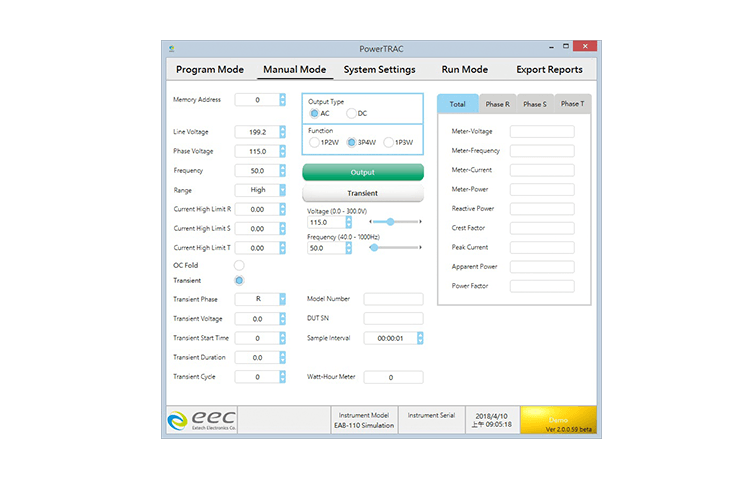

Live Parameter Settings

Flexible live parameter settings in Manual Mode allow users to quickly change the voltage and frequency values even while outputting the power.

Multiple Plans at One Execution

Plan testing steps from Program Mode with up to 400 pre-set modes for continuous, uninterrupted testing and greater efficiency.

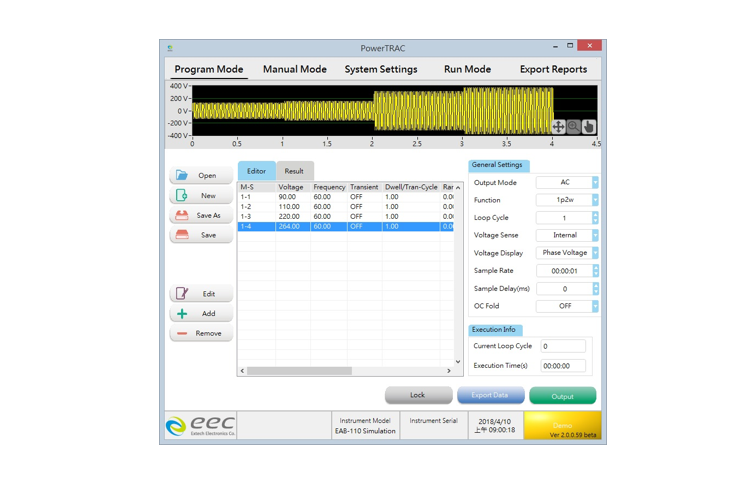

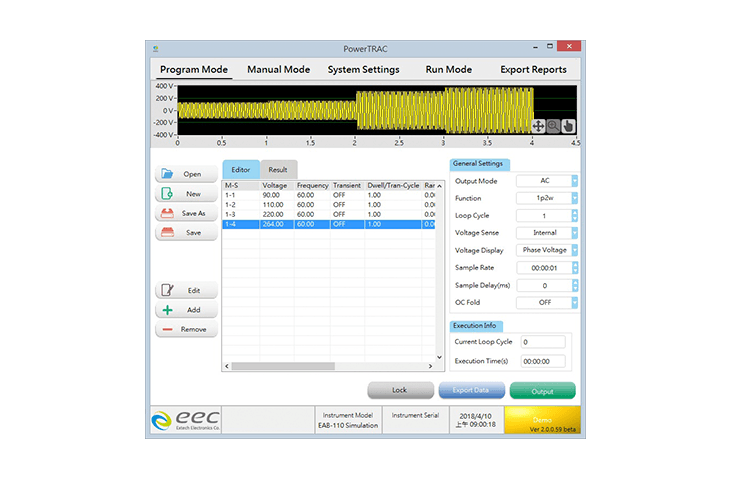

PowerTRAC program Mode

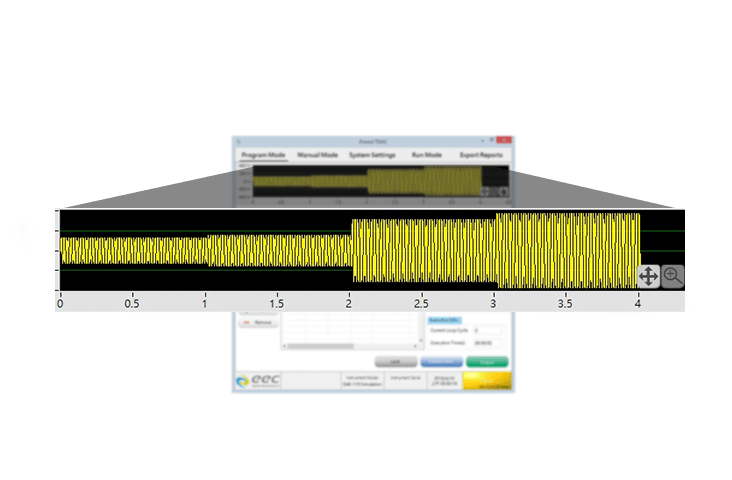

PowerTRAC Waveform

Viewing the Details Freely

Users can live preview waveforms, zooming in and out and panning scrutinize different steps in detail, allowing quick identification the faulty configurations.

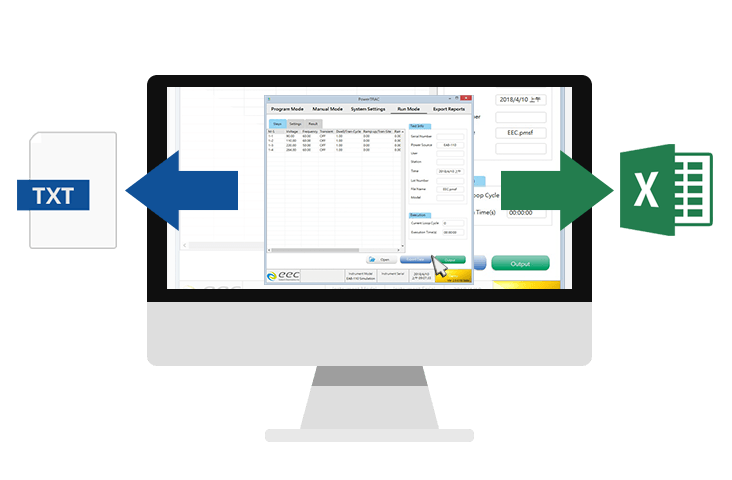

Automatic Data Recording

Efficiently collect the footprint on each test with fast automatic data recording function, quickly exporting information to Excel spreadsheet or txt file for future analysis.

PowerTRAC Automatic Data Recording to Excel

Specifications

Can't decide which model is right for you?
We are here to help.

Contact Us

For more details download the full documentation here:
Download PDF

PowerTRAC
HardwareNational Instruments GPIB interface card GPIB connection cables
Operating SystemWindows 7, Windows 8, Windows 10
ProcessorPentium or AMD Processor (Above 1GHz of speed is recommended)
MemoryMinimum 2GB RAM (Recommended 3GB)
Storage620MB free disk space
