EAL–5000 Series Programmable AC Power Source

EAL–5000 Series Programmable AC Power Source

Pure Power, Pure Performance

The EAL-5000 series is the next generation high-performance programmable AC power source EEC ever created. Designed completely with the end-user in mind. The EAL-5000 series provide rich functionalities and product selections. Making it the ideal and cost-effective solution for all kinds of applications.

Protection

Over Current Protection

Over Voltage Protection

Over Power Protection

Over Temperature Protection

Short Current Circuit

Reverse Current Protection

Fan Protection

Safety and Productivity Features

OC Fold

Continuous

V Sense

Angle Setting

Surpassing the world electric demand

The world and product use on electricity differently. EAL-5000 series capable of outputting AC, DC, or AC+DC modes meeting numerous power demands. With wide ranges performance of up to 310V output voltage, 1,200Hz frequency, and various waveforms. Simulate real-world power distribution conditions at anywhere.

Detail simulation just got a lot easier

For R&D and Quality Assurance, a variety of pulses, and spikes simulation is critical. EAL built-in modes that is pre-compliance testing according to IEC 61000* standards. To simulate common grid faults, voltage dips, and other power abnormalities.

*The IEC 61000 standards tested includes IEC 61000-3-3,11,12, IEC 61000-4-11,13,14,28,29,34. Some conditions may apply. Contact EEC sales representatives for the complete information.

18 combinations, empower your selection

Available in 6 various capacity models, from 500VA to 6,000VA and 3 level of upgradeable performance packages position for different needs. A simple choice on right product for the right use at the right price.

Made it compact, make it spacious

The advanced high power density technology designed to establish ultimate compactness. Fitting up to 3kVA of power into common standard 2U size and 6kVA into standard 4U size. With 6kVA weight only 28kg.

Performance and quiet comes together

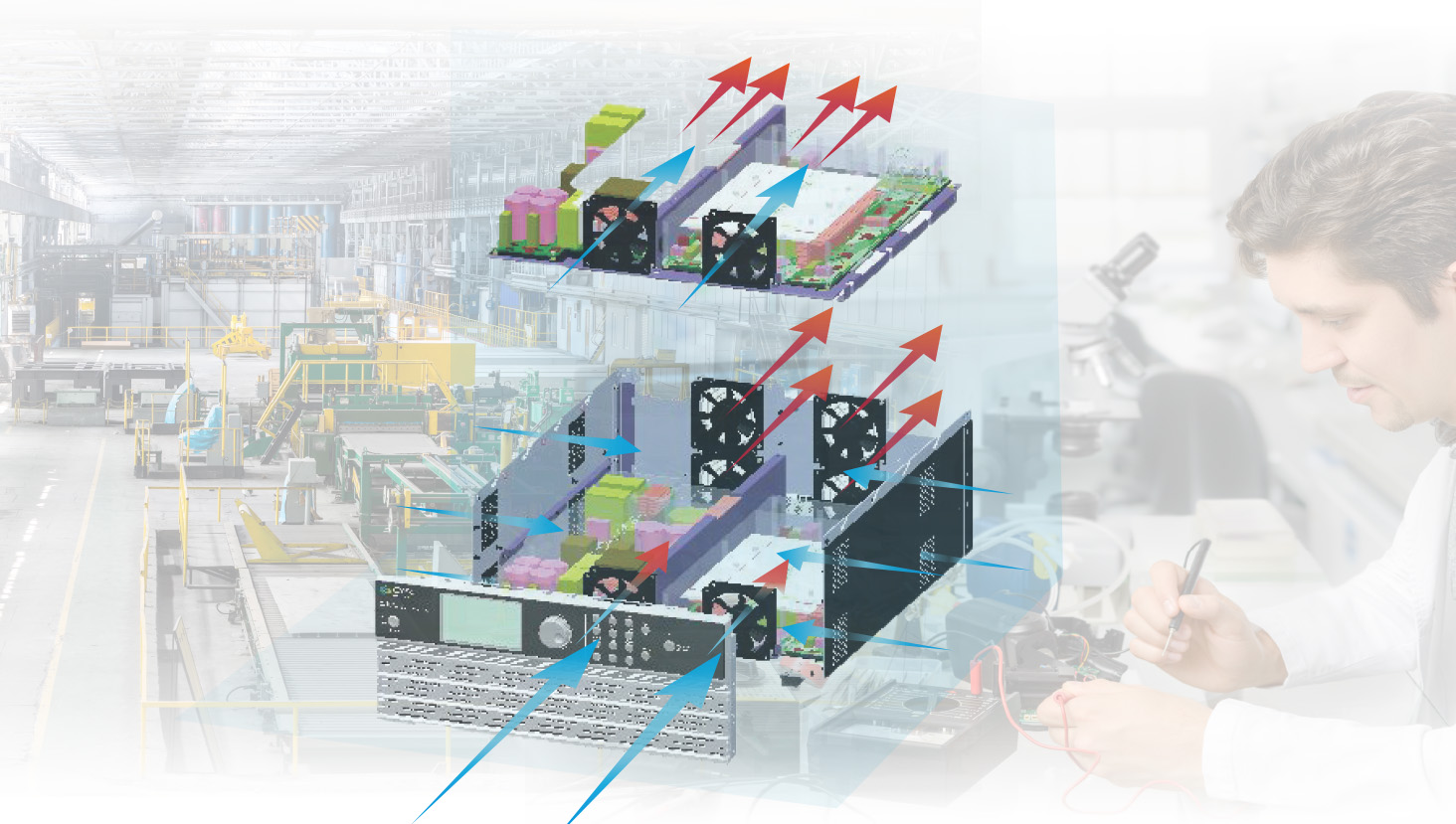

With superior mechanical engineering design plus quiet durable fans. The heat dissipates quickly on the instrument. Helping maintain high performance in harsh manufacturing environments. And keeping low noise for a safer working condition in quiet environments.

Simple and intuitive user interfaces, speedy and controllable operations

Flexible rotating knob and numeric touch control, plus intuitive user interface results faster operation efficiency. Anyone can easily pick up and get started in no-time.

Setup, Monitor, and Operate Remotely via PowerTRAC Software

In IoT era, data and connectivity matters. PowerTRAC is EEC proprietary software on power source meeting this. Empowers EAL-5000 series in full remote control. While generate data reports for future analysis.

Premium Built Quality and TÜV certificated

The quality and reliability we’ve committed, started from designed, material used, to harsh environmental test. Where every detail is checked. Certified by TÜV, makes EAL-5000 series the world class safe and reliable AC power source. Standard: TÜV EN 61326-1

40 years in making high quality and reliable instruments

EEC has been committed delivering high quality and reliability product to our customer since 1979. We have a long history in making AC power source, many of them remains in service today. We gathered 40 years of enriched experience and making the AC power source for next generation demands.

Specifications

Can't decide which model is right for you?
We are here to help.

Contact Us



For more details download the full documentation here:
Download PDF

EAL-5005EAL-5012EAL-5020EAL-5030*
(Coming Soon)
EAL-5040EAL-5060*
(Coming Soon)

  AC Output

Max. Power500VA1250VA2000VA3000VA4000VA6000VA
Max. Current
(0 - 155Vac)
[email protected][email protected][email protected][email protected][email protected][email protected]
Max. Current
(0 - 310Vac)
[email protected][email protected][email protected][email protected][email protected][email protected]
Phase1Ø2W
 Frequency Range (Standard)DC, 40- 500Hz Full Range Adjust
 Frequency Range (Advanced & Professional)*DC, 5 - 1200Hz Full Range Adjust
 Total Harmonic Distortion (THD)≦0.3% @ 50/60Hz (Full Resistive Load)
 Crest Factor ≥3

  DC Output

 Max. Power300W750W1200W1800W2400W3600W
 Max. Current (0 - 210V)3.0A7.5A12.0A18.0A24.0A36.0A
 Max. Current (0 - 420V) 1.5A 3.75A 6.0A 9.0A 12.0A 18.0A

  Input

 Phase 1Ø 1Ø or 3Ø
 Voltage100 - 240 V ± 10%200 - 240V ±10%1Ø / 3Ø3W: 200 - 240V ± 10%
3Ø4W: 346 - 416V ± 10%
Frequency 47 - 63Hz
Power Factor≧ 0.93 (at Full load)≧ 0.97 (at Full load)

   General

Efficiency ≧74% (at Full load) ≧81% (at Full load) ≧84% (at Full load) ≧83% (at Full load) ≧84% (at Full load) ≧85% (at Full load)
 Dimensions
(WxHxD, mm)
430x88x500430x176x500
 Net Weight15kg28kg

*Product and features coming soon (3kVA, 6kVA models and professional package) and its features

Models

Options

Accessories

Note:
  1. At working voltage 100V / 200V
  2. At voltage > 10V
  3. Maximum distortion is tested at 100 - 155V (155V Range) and 200 - 310V (310V Range) with maximum current to a resistive load
  4. For output frequencies>100Hz reference the Load Regulation. Output will stabilize to ±0.5V , <1S .
  5. DC to 300 kHz components at voltage=0V
  6. At output frequency 30Hz - 1200Hz. Response time < 7S at output frequency 5 - 29.9Hz. Response time < 2S at DC output When the OC_FOLD function is enabled, the transient current and power cannot exceed 110% of the total power, otherwise the protection will be triggered
  7. 500 / 1250 / 2000 / 3000VA: Input voltage is from 100V to 240V,maximum output power to linear load,sine wave,output frequency 30Hz to 1200Hz 4000 / 6000VA: Input voltage is from 200V to 240V,maximum output power to linear load,sine wave,output frequency 30Hz to 1200Hz
  8. At the 10% to 100% of the maximum rated current.
  9. At the 10% to 100% of the maximum rated power. If output current exceeds the cuurent measurement L range,power measurement accuracy follows the H range.
  10. Efficiency is tested at input voltage 220Vac with maximum power to a linear load,output frequency 5Hz to 500Hz.
  11. At 10% to 90% of output voltage
  12. The operating humidity is non-condensing
