Simply The Most Powerful Tri-Phase Source

The 6300 series high-power programmable tri-phase AC power source features up to 300kVA output. Pulse-width-modulation switching design consumes less power and is optimized for space efficiency. The 6300 series is the best power solution for industrial high-power motors, air conditioning systems, and electrical charging stations.

Protection

Over Current Protection
Over Voltage Protection
Over Power Protection
Over Temperature Protection
Short Current Circuit
Reverse Current Protection (Optional)

Safety and Productivity Features

OC Fold
V Sense (optional)

Up to 300kVA Output Power

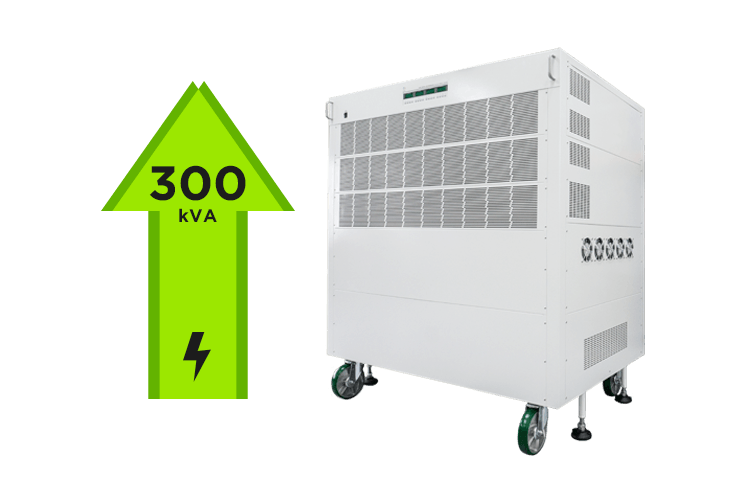

This high-power programmable tri-phase AC power source features up to 300kVA output.

300kVA total power output

High Power Density

High power output with high-power density design optimizes space efficiency.

Meets the Demand of Aerospace

The wide range of output frequency selection from 360-440Hz and 760-840Hz, makes it suitable for aerospace industry.

fully-adjustable-frequencies-6300-6500

Power of OCF

EEC proprietary Over Current Fold (OCF) function automatically adjust voltages, maintaining current for activating the DUT.

Ramp-up and Ramp-down Control

Ramp-up and ramp-down settings deliver added flexibility and control over power distribution timing.

6300-Ramp-up-ramp-high

Details At A Glance

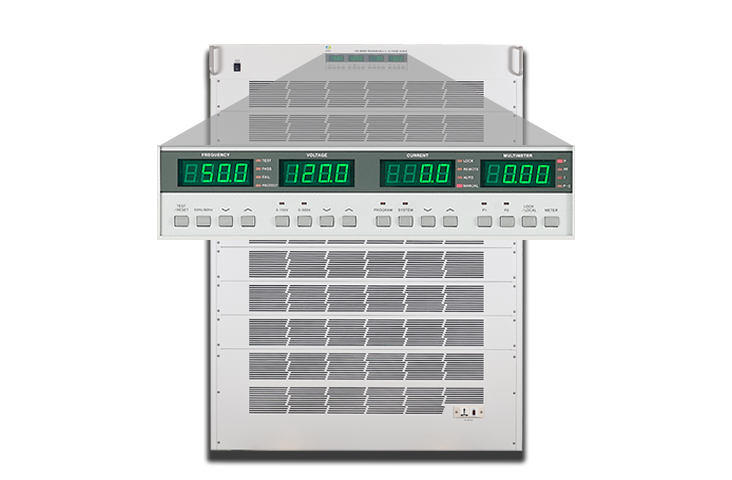

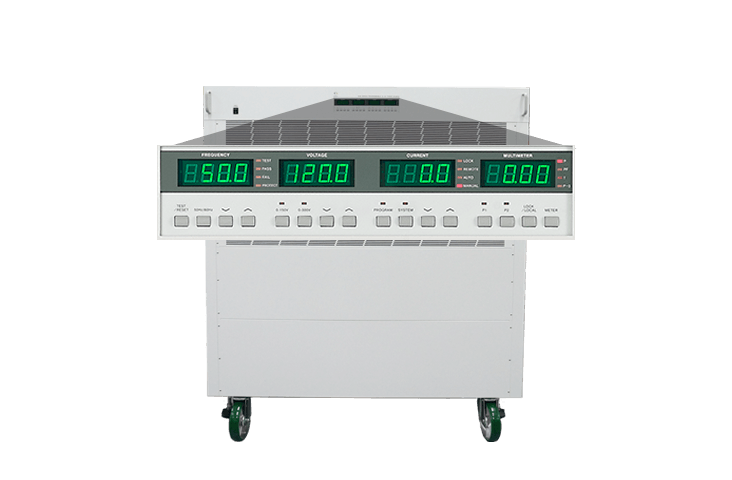

Four LED display clearly show frequency, voltage, current, and power status simultaneously.

Fully Customizable Testing Behaviors

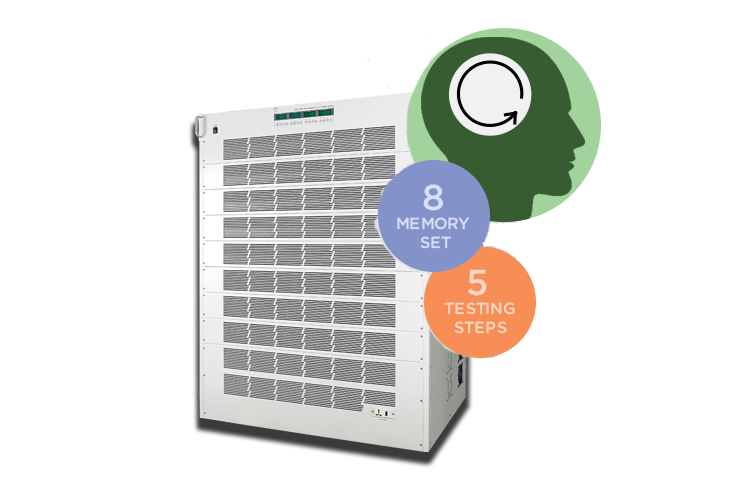

Eight (8) built-in memory sets with five (5) testing steps individually simulate a full range of test conditions.

8 memory-steps

Specifications

Can't decide which model is right for you?
We are here to help.

Contact Us



For more details download the full documentation here:
Download PDF

 63096310*631563306345*63606390631206315063180632106324063300

  AC Output

Max. Power Single-Phase3kVA3.3kVA5kVA10kVA15kVA20kVA30kVA 40kVA50kVA60kVA70kVA80kVA100kVA
Total Power9kVA10kVA15kVA30kVA45kVA60kVA90kVA120kVA150kVA180kVA210kVA240kVA300kVA
Max. Current (r.m.s) (0 - 150 V)25.2A28A42A84A126A168A252A 336A 420A504A588A672A840A
Max. Current (r.m.s) (0 - 300 V)12.6A14A21A42A63A84A126A168A 210A 252A294A336A420A
Phase3Ø4W
 Frequency Range45.0 - 70.0Hz Full Range Adjust
 Total Harmonic Distortion (THD)< 1% at 110/220V & 50/60Hz (Resistive Load)
 Crest Factor ≥3

  Input

 Phase3Ø4W
 Voltage220Vac (L-N)/380Vac (L-L) ±10%
Frequency 47 - 63Hz
Power Factor0.8 (with optional passive PFC > 0.95)

  General

Efficiency≧80%(at Full Load )≧85%(at Full Load )
 Dimensions (WxHxD, mm)430x732x650600x732x900430x732x650600x842x900800x1557x9001200x1557x9001600x1557x11061600x1808x1206
 Net Weight160kg299kg199kg373kg774kg645kg1139kg 1659kg 1800kg 2100kg2400kg2600kg2850kg

*With PFC function.

Models

Options

Accessories

Note:

  1. Enjoy 2 Years Warranty.
  2. Only one interface can be selected among 1528 & 1536 interface card.
  3. Input Voltage can be selected for without PFC model :
    •  3Ф/3W: 200V, 208V, 220V, 230V, 240V, 380V, 400V, 415V;
    •   3Ф/4W: 220V/380V, 230V/400V, 240V/415V
  4. Input Voltage can be selected  for with PFC model :
    •  3Ф/3W: 200V, 208V, 220V, 230V, 240V, 380V, 400V, 415V, 415V, 440V, 480V;
    • 3Ф/4W: 220V/380V, 230V/400V, 240V/415V, 254V/440V, 266V/460V, 277V/480V
  5. Space-9190 supports on the standard configuration only, optional configuration and DC functions are not supported.
  6. Factory option, freight is not included when product return for reinstallation.
  7. OPT.608 is only use for 6309, 6310, 6315 & Models with PFC.
  8. OPT.609 is only use for 6330, 6345, 6360 & Models with PFC.
  9. OPT.610 is only use for 6390, 63120 & Models with PFC.
  10. OPT.615 is only use for 6309, 6310 & Model with PFC.
  11. OPT.616 is only use for 6315 & Model with PFC.
  12. OPT.617 is only use for 6330 & Model with PFC.
  13. OPT.649 is only use for 63150, 63180 & Models with PFC C.
  14. OPT.671 is only use for 6309, 6310, 6315, 6330 & Models with PFC.
  15. OPT.672 is only use for for 6345, 6360, 6390, 63120, 63150, 63180, 63210, 63240, Models with PFC & 63300P.
  16. OPT.673 is only use for 6309,  6310, 6315, 6330, 6345, 6360 & Models with PFC.
  17. OPT.675 is Bundle 400/800Hz for Models without PFC.
  18. OPT.676 is only use for 63210, 63240, Models with PFC & 63300P.
  19. Accessory 1119 should be select with accessory 1528 or OPT.109.
  20. Accessory 1176(1.5M), 1176(5M) are only use for 6309 & 6309P.
  21. Accessory 1179(1.5M), 1179(5M), 1189(1.5M), 1189(5M) are only use for 6315 & 6315P.
  22. Accessory 1180(1.5M), 1180(5M) are only use for 6330.
  23. Accessory 1181(1.5M), 1181(5M) are only use for 6330P.
  24. Accessory 1190(1.5M), 1190(5M) are only use for 6330 & 6330P.
